SHIPPING CONTAINER JIB CRANE

Model: JCUBSC

⚖️Capacity Range (kg): 50 - 500 kg

↔️Slew Radius Range (mm): 1,000 to 3,500

🔄Maximum Slew Angle (°): 225 / 225 + 260

Compliance: AS1418.1 and AS1418.3

A container mounted jib crane provides safe and efficient lifting within a dedicated work area. Mounted to a suitable shipping container or container-based structure, it is a practical solution for improving material handling, productivity, and workplace safety where conventional crane mounting options are limited.

PRODUCT DETAILS

All About - JCUBSC

Levitate’s Shipping Container Jib Crane is a practical and versatile solution for applications that require reliable lifting from a container-based support structure. It is well suited to lighter duty handling, maintenance, and service applications where a conventional free standing or wall mounted jib crane is not suitable. Depending on the installation, the crane can be supplied in two main mounting configurations: a container wall mounted option, or a slewing pillar arrangement mounted between the container floor and ceiling structure. To suit different operating requirements, Levitate can supply the crane with either an under braced jib arm or an articulating arm. The under braced option offers a straightforward and robust lifting solution, while the articulating arm provides improved flexibility and manoeuvrability in tighter areas. The articulating version can offer up to approximately 3,500mm of reach with a capacity of up to 200kg at that outreach. Each crane can be tailored to suit the container arrangement, available space, and lifting requirements, subject to structural suitability of the supporting container or container-based structure.

Product Highlights

Cost-effective lifting solution for container-based work areas
Suits everyday handling, maintenance, and service applications
Available with container wall mounted or floor-to-ceiling pillar mounting options
Under braced jib arm option offers a robust and efficient design
Articulating arm option improves manoeuvrability around obstacles and confined areas
Smooth manual slewing allows accurate and controlled load positioning
Can be configured to suit available space and required outreach

TECHNICAL DATA

General Information

Capacity Chart

ARM OPTIONS

Under Braced

The under braced arm is generally the better option where higher lifting capacity and a simpler, more robust jib arm arrangement are required. Although the maximum reach is shorter, it is well suited to heavier lifting duties at the container opening and can offer better hook height within the available space.

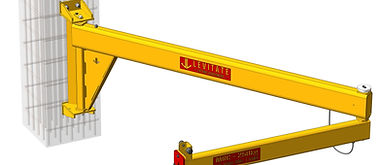

Articulating

The articulating arm is better suited where greater reach and more flexible manual positioning are required. With a two-arm arrangement and additional pivot point, it allows the hoist to be moved more freely around the container doorway and provides reach up to 3.5 metres, making it a practical option for lighter loads that need to be positioned further from the mounting point.

MOUNTING OPTIONS

Wall Mounted

The wall mounted option is a practical and cost-effective solution where the container wall is of suitable strength and standard construction. Installation involves drilling through the container wall, with the jib crane mounted using a front plate and matching backing plate to help distribute the load. This arrangement is ideal where a simple fixed mounting solution is preferred and modification of the container wall is acceptable.

Slewing Column

A good alternative where drilling the container wall is not desirable. This is especially suitable for containers used as cool rooms or similar applications where wall penetrations may be problematic. The independent pillar support allows the jib crane to be installed without relying on the container wall to carry the main operating loads.
